Name: yavga
Created: Mar 20, 2009
Updated: Jul 20, 2015
SVN Updated: May 19, 2009
SVN: Browse
Latest version: download (might take a bit to start...)
Statistics: View
Bugs: 0 reported / 0 solved
Star1you like it: star it!

Other project properties

Category:Video controller
Language:VHDL
Development status:Alpha
Additional info:FPGA proven
WishBone compliant: No
WishBone version: n/a
License: BSD

Description

This core is a simple and small VGA controller.

  • It drives vga monitors with an 800x600 resolution and 72Hz vertical refresh rate (50MHz pixel clock)
  • It displays chars on the screen (each char is 8x16 pixels)
  • It has a customizable charset (you can use a simple text editor in order to "visually" customize it)
  • It can display a color "waveform"
  • It can display a color grid and "cross cursor"

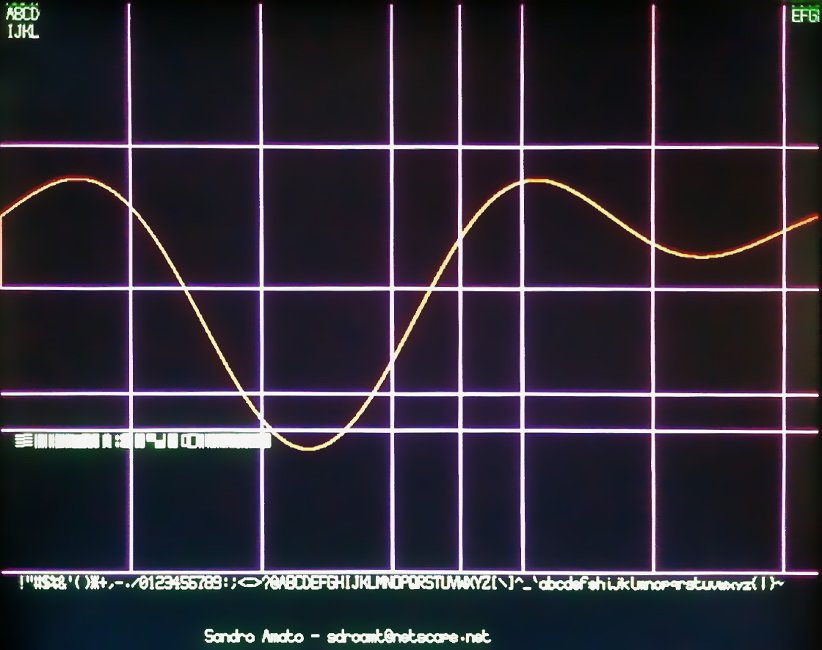

Click the image in order to see a full size screenshot: Titlescreenshot_t

VGA Connector Example
VGA Connector Example
